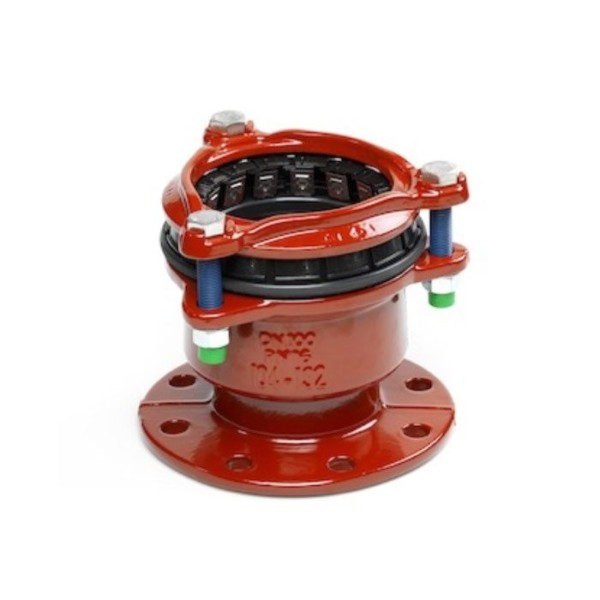

2″ GF+ Multi Joint Cast Iron Flanged Adaptor. Code IRR‑MJFA200

SKU:IRR-MJFA200

2″ x (46 – 71mm OD pipe tolerance) flanged x pipe adaptor.

These are perfect for connection to a flanged mainline isolating valve; they can be buried underground. Perfect if you want to add a new mainline isolating valve to an existing pipe (PE or PVC); if you have a mainline blow-out you need to repair, why not use the opportunity to install a new mainline isolating valve, like a flanged butterfly valve or resilient seated flanged gate valve? Use one of these fittings on each side of the valve to connect your pipe into. Use on large pump sets for pipe connections.

Please note that for PE pipes you’ll need a pipe-insert to make the pipe’s wall rigid. Refer to the Pipe Inserts list

More info

2″ GF+ Multi Joint Cast Iron Flanged Adaptor. Code IRR‑MJFA200

2″ x (46 – 71mm OD pipe tolerance) flanged x pipe adaptor.

These are perfect for connection to a flanged mainline isolating valve; they can be buried underground. Perfect if you want to add a new mainline isolating valve to an existing pipe (PE or PVC); if you have a mainline blow-out you need to repair, why not use the opportunity to install a new mainline isolating valve, like a flanged butterfly valve or resilient seated flanged gate valve? Use one of these fittings on each side of the valve to connect your pipe into. Use on large pump sets for pipe connections.

Please note that for PE pipes you’ll need a pipe-insert to make the pipe’s wall rigid. Refer to the Pipe Inserts list

More info

2″ GF+ Multi Joint Cast Iron Flanged Adaptor. Code IRR‑MJFA200

2″ x (46 – 71mm OD pipe tolerance) flanged x pipe adaptor.

These are perfect for connection to a flanged mainline isolating valve; they can be buried underground. Perfect if you want to add a new mainline isolating valve to an existing pipe (PE or PVC); if you have a mainline blow-out you need to repair, why not use the opportunity to install a new mainline isolating valve, like a flanged butterfly valve or resilient seated flanged gate valve? Use one of these fittings on each side of the valve to connect your pipe into. Use on large pump sets for pipe connections.

Please note that for PE pipes you’ll need a pipe-insert to make the pipe’s wall rigid. Refer to the Pipe Inserts list

Trade Enquires

Our website makes it convenient to order small quantities of our products. If you require larger quantities or advice from our experts you can get in touch to speak to one of our representatives.

Get In Touch

Description

Georg Fisher Multi-Joint fittings are constructed of ductile cast iron with Resicoat® epoxy powder coating, making every fitting extremely strong & able to withstand decades in direct burial. These fittings can be used in the irrigation industry as reliable repair couplers, so next time you have a major mainline blow-out, think of the GF+ Multi-Joint fitting to make your repair fast, effective and reliable.

Each Multi-Joint fitting has a sealing system constructed of a mass of “teeth” that grab the pipe & pull it into place, along with EPDM seals to make it leak proof. Stainless bolts & nuts with a variation of play enables the fitting to be tightened without the pipe needing to be 100% straight; anyone who has repaired a broken old pipe with know that a slight angle in either pipe being joined can cause huge issues, but the GF+ Multi-Joint repair coupler has an angle tolerance that allows 8% in either pipe (i.e. 16% total from both pipes being joined), so you can join the pipes together without spending the rest of your day arguing with non-aligned pipes!

You can also use the GF+ Multi Joint couplers to join old pipes onto new ones of different material, like steel onto PE (polyethylene), or old PVC pipes onto new PE pipes.
